DESCRIPTION & TECHNICAL SPECIFICATIONS
APPLICATION
Used for the detection of concrete cover depth as well as the localization, distribution and direction of rebar
STANDARDS
GB 50010-2010, GB 50204-2015, GB/T50344-2004, JGJ/T152-2008, DB11/T365-2016, GBT/50784-2013, JJF1224-2009 etc.
FEATURES
Cover depth and spacing of rebars displayed simultaneously
No boundary Grid-Measure mode, 5 meters in maximum,Intuitive display of rebar distribution grid
Light column indicator, easy to locate the rebars
Advanced algorithm for nearby rebar correction
Automatic cover calibration
Bluetooth data transmission, real-time upload of data through mobile APP
Replaceable battery and USB ports for quick and easy data transfer
Powerful PC software for data analysis and report generation
Meets or exceeds the specifications of JGJ/T 152-2008 and several other standards
SPECIFICATIONS
Display: 5.0-inch ISP color LCD
Memory: 2,000,000 rebars
Battery: quick release lithium battery, used continuously for 21hour
Rebar diameter range: ∅6mm~∅50mm
Small range: 1~105mm, depending on diameter
Big range: 5~205mm, depending on diameter
Cover accuracy: ±1mm: 1~80mm, ±2mm: 81~120mm, ±4mm: 121~205mm
Diameter estimate accuracy: ±1 grade

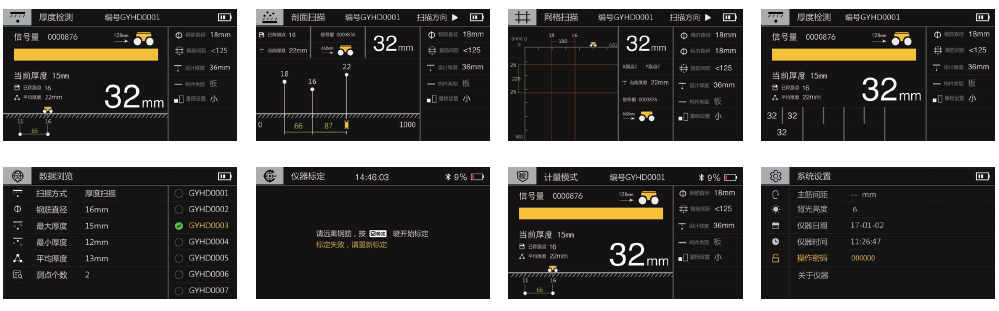

INTERFACE
