DESCRIPTION & TECHNICAL PARAMETERS

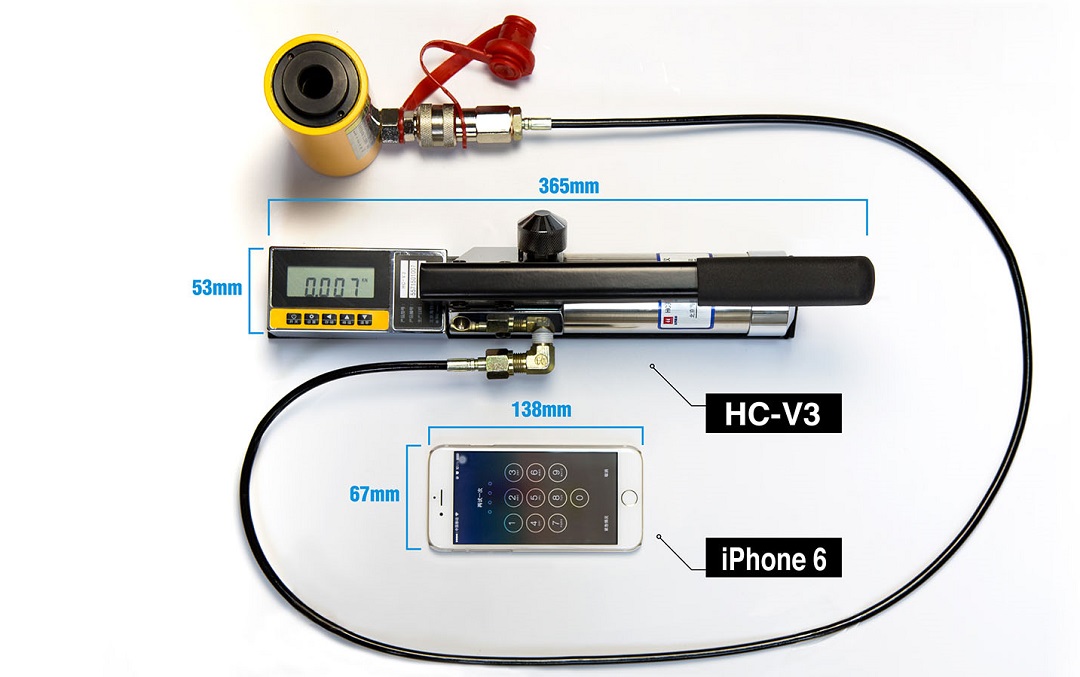

SIZE

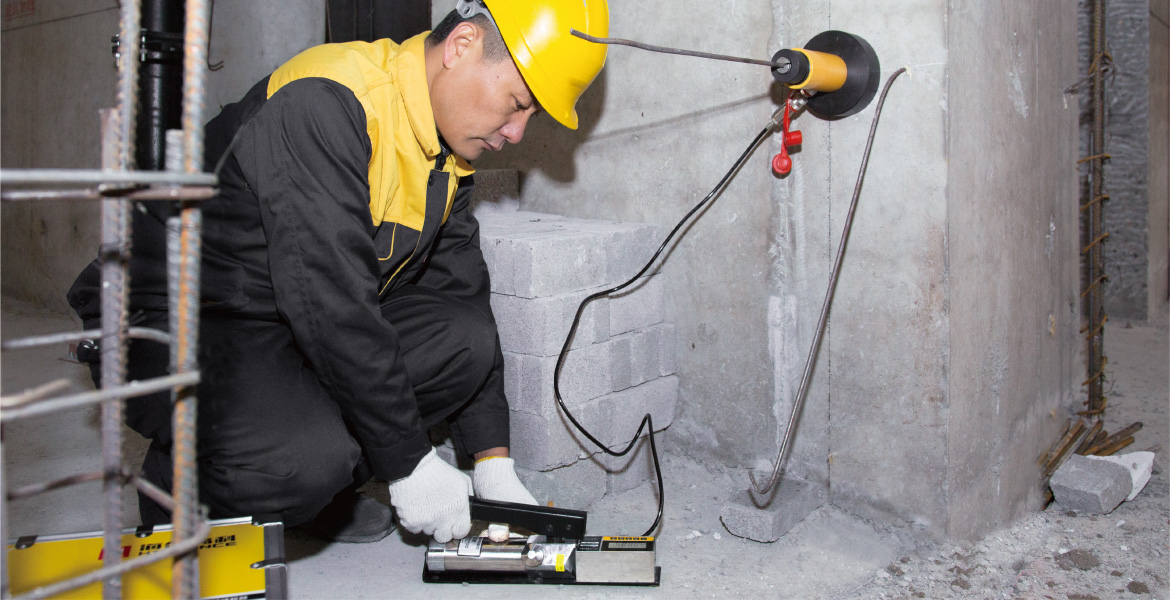

APPLICATION
Used for anchoring force detection of various bolts, steel bars, expansion bolts, etc. It can also be used for on-site pull-out detection of glass curtain walls.
STANDARDS
GB50367-2006, GB50330-2013, JGJ120-2012, CECS 22:2005, GB50007-2011, JGJ 145-2013, GB50550-2010, GB50203-2011 etc.
FEATURES
Portable design which can be put in a handbox
Peak hold, automatic record the max force values
10-section polyline correction
Automatic shutdown and backlight
Cylinder automatic reset
Can store 200 test values
Overload protection
SPECIFICATIONS
Center hole diameter: 18mm
Cylinder stroke: 50mm
Range: 0~30KN
Adapt anchor: Φ6~12mm
Resolution: 0.001KN
Weight: 7Kg
